Latest Antenna Products From Steatite

Discover the latest in high-performance microwave and RF antennas, the below products are just an example of the antenna that we can supply. If you need something a bit different, contact one of our team to see how we can help.

0.5 – 22 GHz Left Hand Circularly Polarised Spiral Antenna fitted with an SMA type Connector and Radome.

Key Features:

• 0.5 to 22 GHz Frequency
• SMA type Connector
• 2 watt c.w. Power Handling
• Typically < 2.0:1 above 0.8 GHz VSWR
• -7.9 to 4.9 dBi Gain
• 0.2 to 7.5 dB Axial Ratio
• 52.5 to 119.5 degrees 3 dB Beamwidth
• 111 to 180 degrees 10 dB Beamwidth
• 1.1kg nominal Weight

Catalogue No: QSP-LC-0.5-22-S-SG-R

Steatite Reference:
QMS-01160

2 – 18 GHz Left Hand Circularly Polarised Spiral Antenna fitted with an SMA type Connector and Radome.

Key Features:

• 2 to 18 GHz Frequency
• SMA type Connector
• 1 Watt c.w. Power Handling
• Typically < 2.0:1, <2.5:1 Maximum VSWR
• 0.2 to 4.8 dBi Gain
• 0.2 to 4.2 dB Axial Ratio
• 60 to 117.5 degrees 3 dB Beamwidth
• 106 to 218 degrees 10 dB Beamwidth
• 225g nominal Weight

Catalogue No: QSP-LC-2-18-S-SG-R

Steatite Reference:
QMS-01138

2 – 18 GHz Right Hand Circularly Polarised Spiral Antenna fitted with an SMA type Connector and Radome.

Key Features:

• 2 to 18 GHz Frequency
• SMA Female Connector
• 1 watt c.w. Power Handling
• Typically < 2.0:1, <2.5:1 Maximum VSWR
• 0.2 to 4.8 dBi Gain
• 0.2 to 4.2 dB Axial Ratio
• 60 to 117.5 degrees 3 dB Beamwidth
• 106 to 218 degrees 10 dB Beamwidth
• 225g nominal Weight

Catalogue No: QSP-RC-2-18-S-SG

Steatite Reference:
QMS-01126

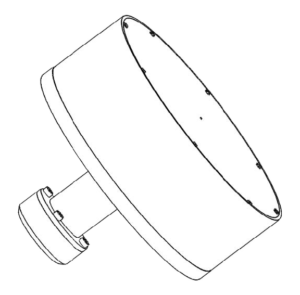

0.5 – 22 GHz Right Hand Circularly Polarised Spiral Antenna fitted with an SMA type Connector and Radome.

Key Features:

• 0.5 to 22 GHz Frequency
• SMA type Connector
• 2 Watt c.w. Power Handling
• Typically < 2.0:1 above 0.8 GHz VSWR
• -7.9 to 4.9 dBi Gain
• 0.2 to 7.5 dB Axial Ratio
• 52.5 to 119.5 degrees 3 dB Beamwidth
• 111 to 180 degrees 10 dB Beamwidth

Catalogue No: QSP-RC-0.5-22-S-SG-R

Steatite Reference:
QMS-01113
